D3 LED Driving Light Pods with DataDim™ Technology
SKU: DNL.D3.050.WUPC: 810005875240
Regular Price
€401,62 EUR
Sale Price
€401,62 EUR
Regular Price
€472,49 EUR
Save €70,87
(14%)
incl VAT
Unit Price
/per
Only -63 left!
In Stock
Low stock (-63)
Order Soon!
Choose the wiring harness for your light kit
Wiring Harness Kit for Driving Lights - Automotive €53,87
Wiring Harness Kit for Driving Lights - Standard Powersports €53,87
Wiring Harness Kit for Driving Lights - Premium Powersports €113,62
DialDim™ Lighting Controller - Universal Fit €274,28
Add dual intensity dimming module (optional)
Only for use with on/off auto and powersports harnesses. Not required with CANsmart or DialDim controllers.
DataDim™ Dual Intensity Controller for Driving Light Harness €59,75
Your Selections:
D3 LED Driving Light Pods with DataDim™ Technology

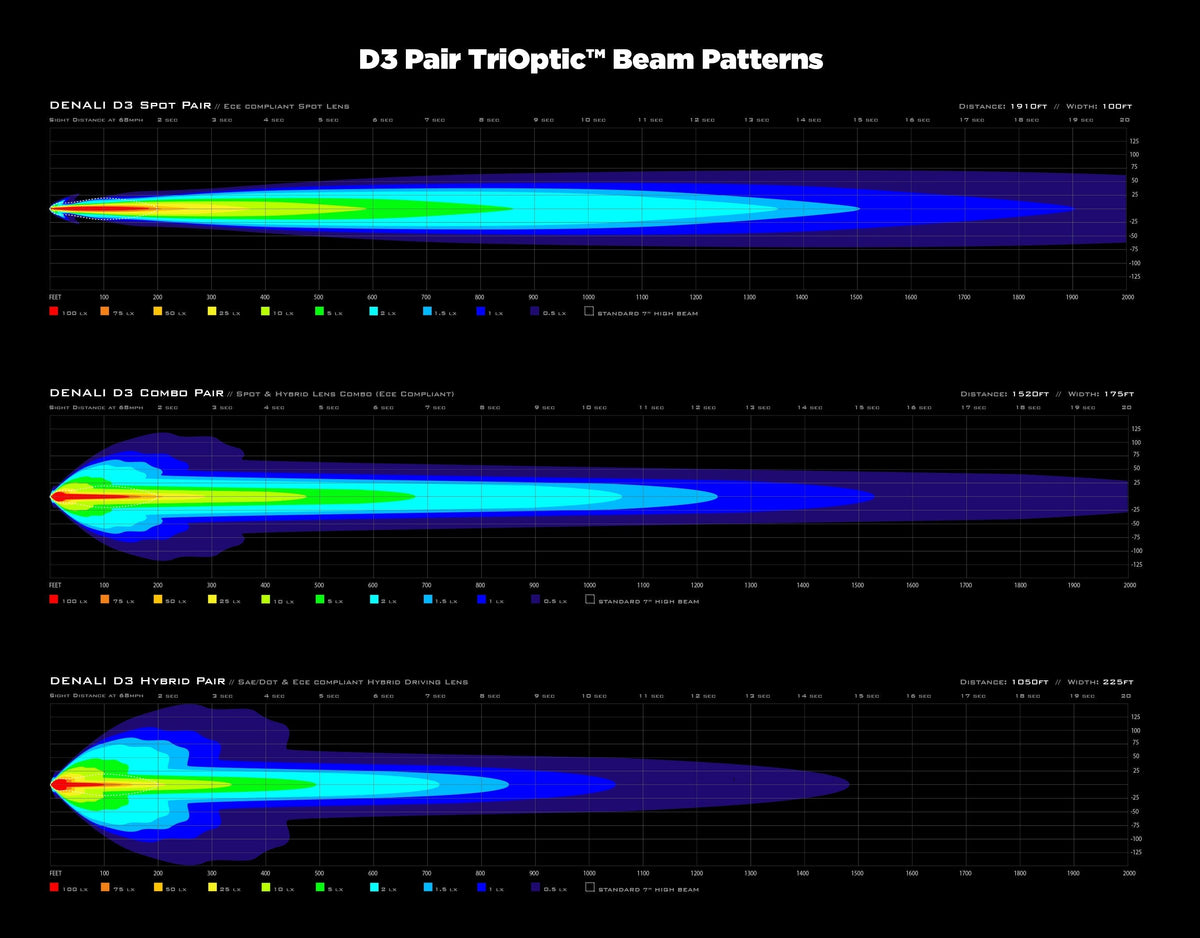

Our new D3 LED lights are built upon a decade of DENALI innovation to deliver the highest performing 36-watt street-legal driving light to hit the market. Our D3 driving light features our signature TriOptic™ beam system that includes a spot and hybrid driving lens with each light pod. Unlike previous TriOptic™ lights, the D3 hybrid driving beam is ECE and SAE compliant to deliver an impressive street-legal high beam in North America and European Union countries. But what if you're not concerned with street-legal precision and just want off-road outrageous? We got you covered too! The D3 spot lens was engineered for maximum beam distance measuring over 1900 feet at 1 lux (per pair). No other 36-watt light even comes close. The spot beam is so impressive it actually outperforms top-tier competitors' lights that are twice its size.

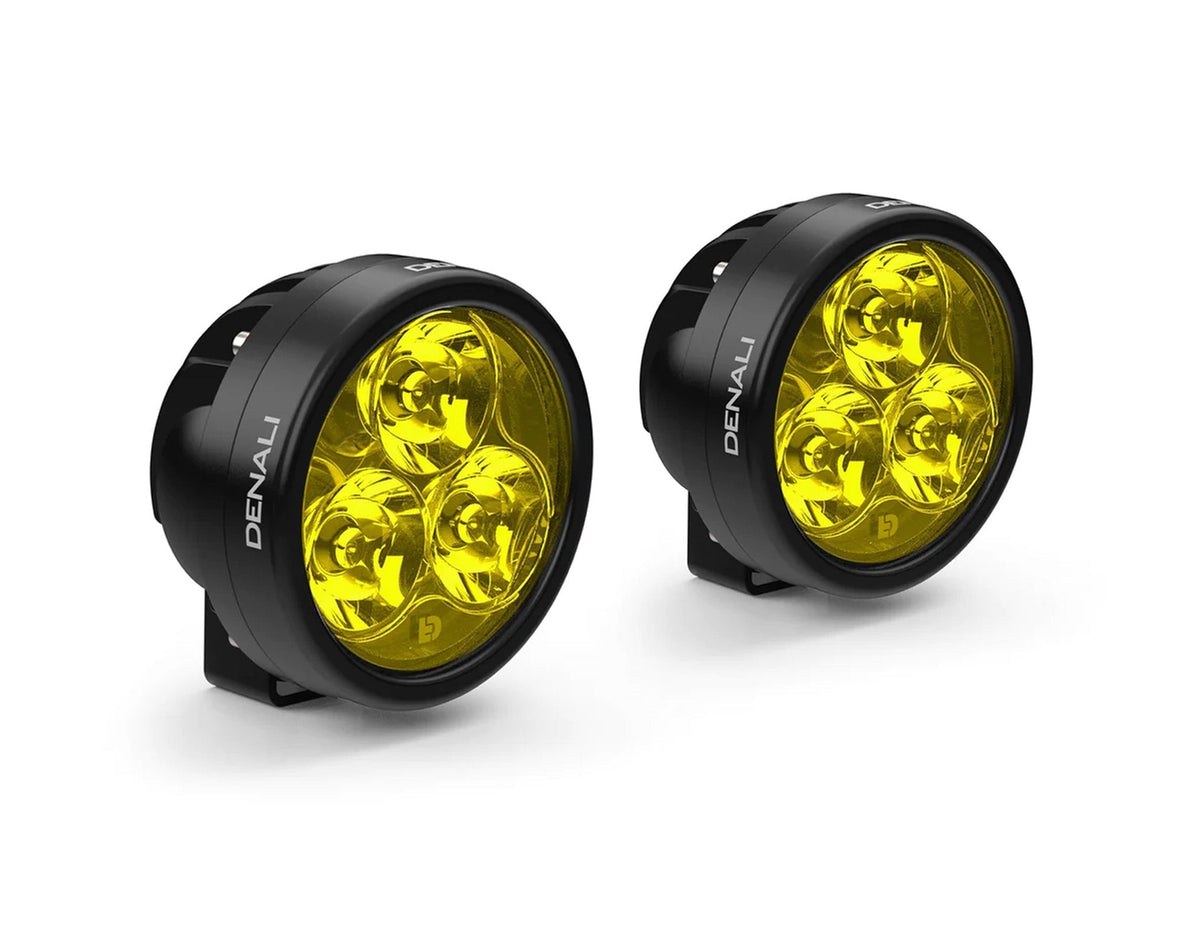

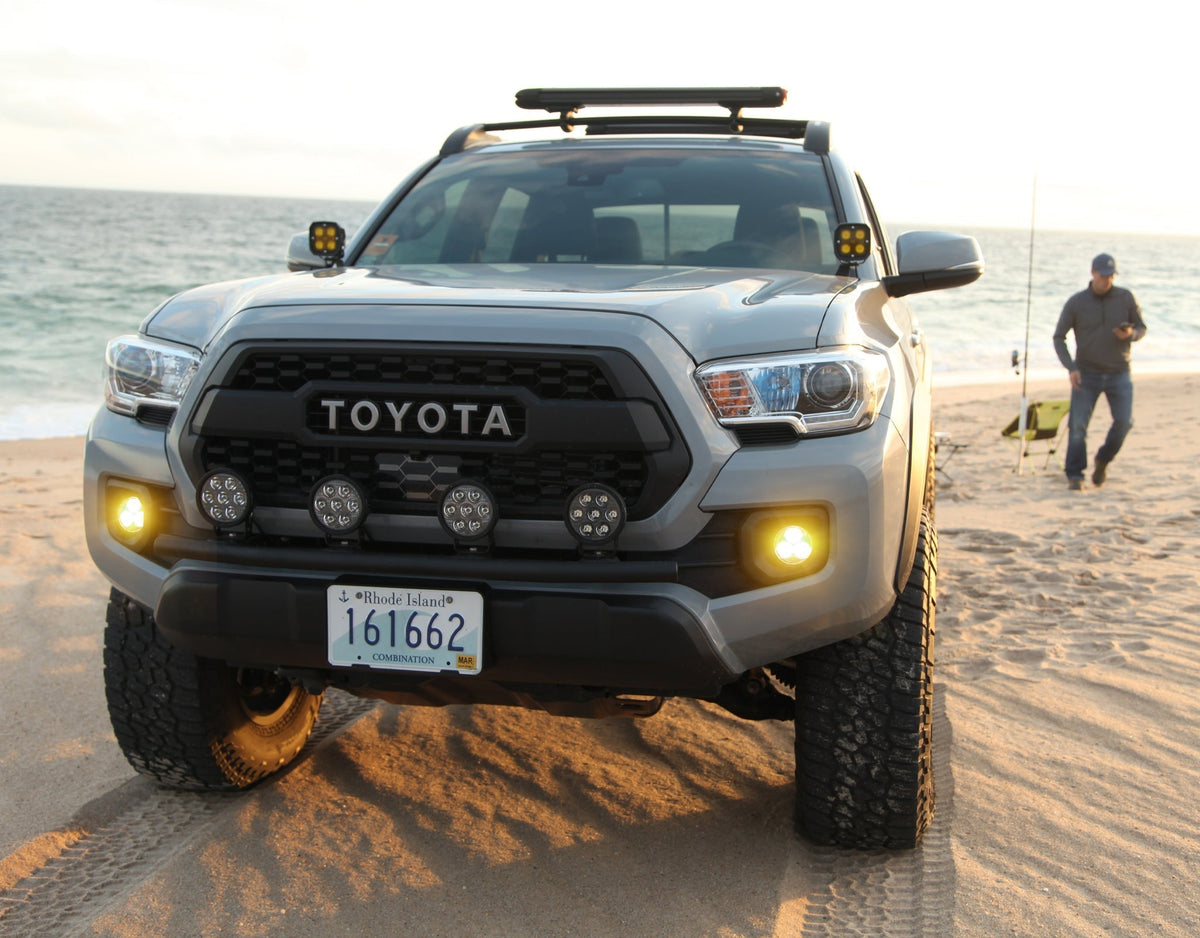

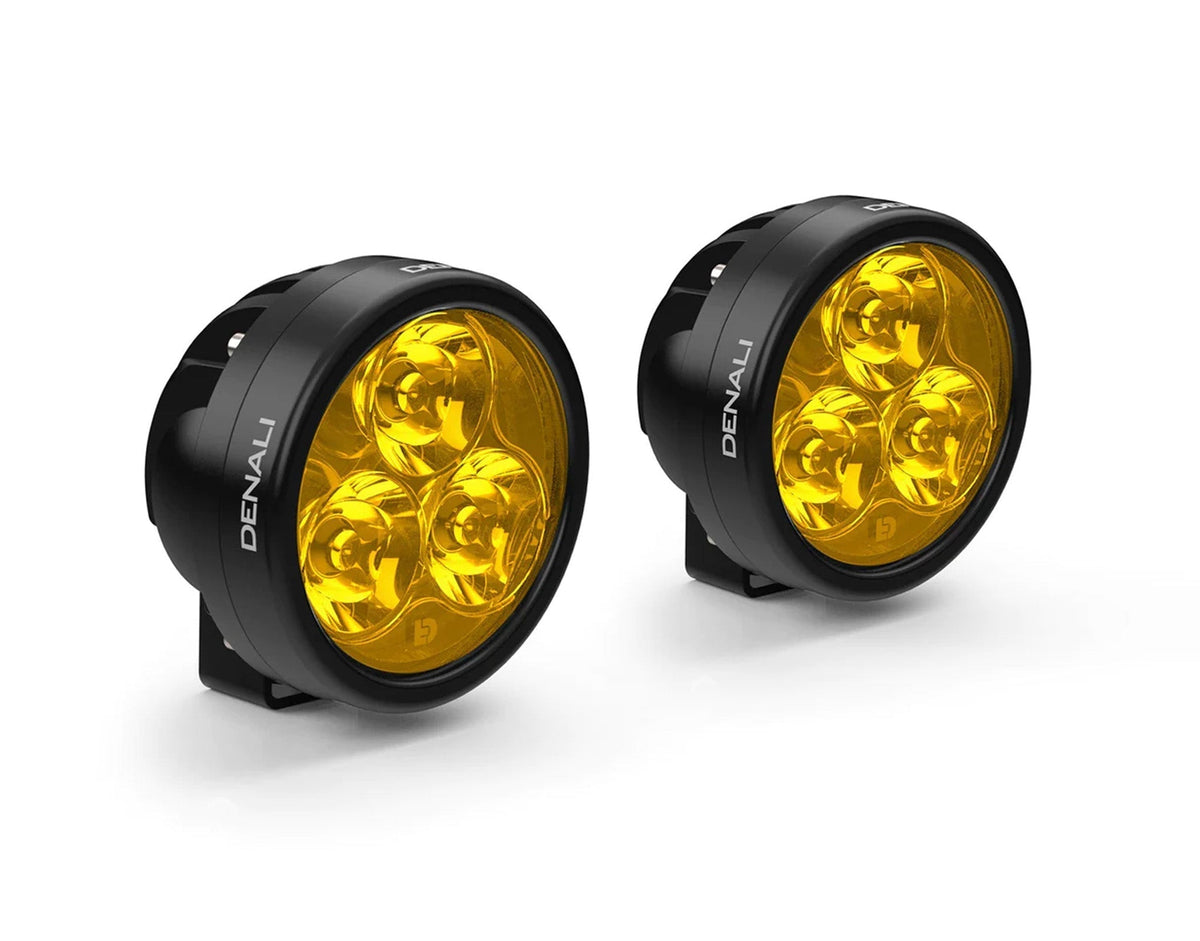

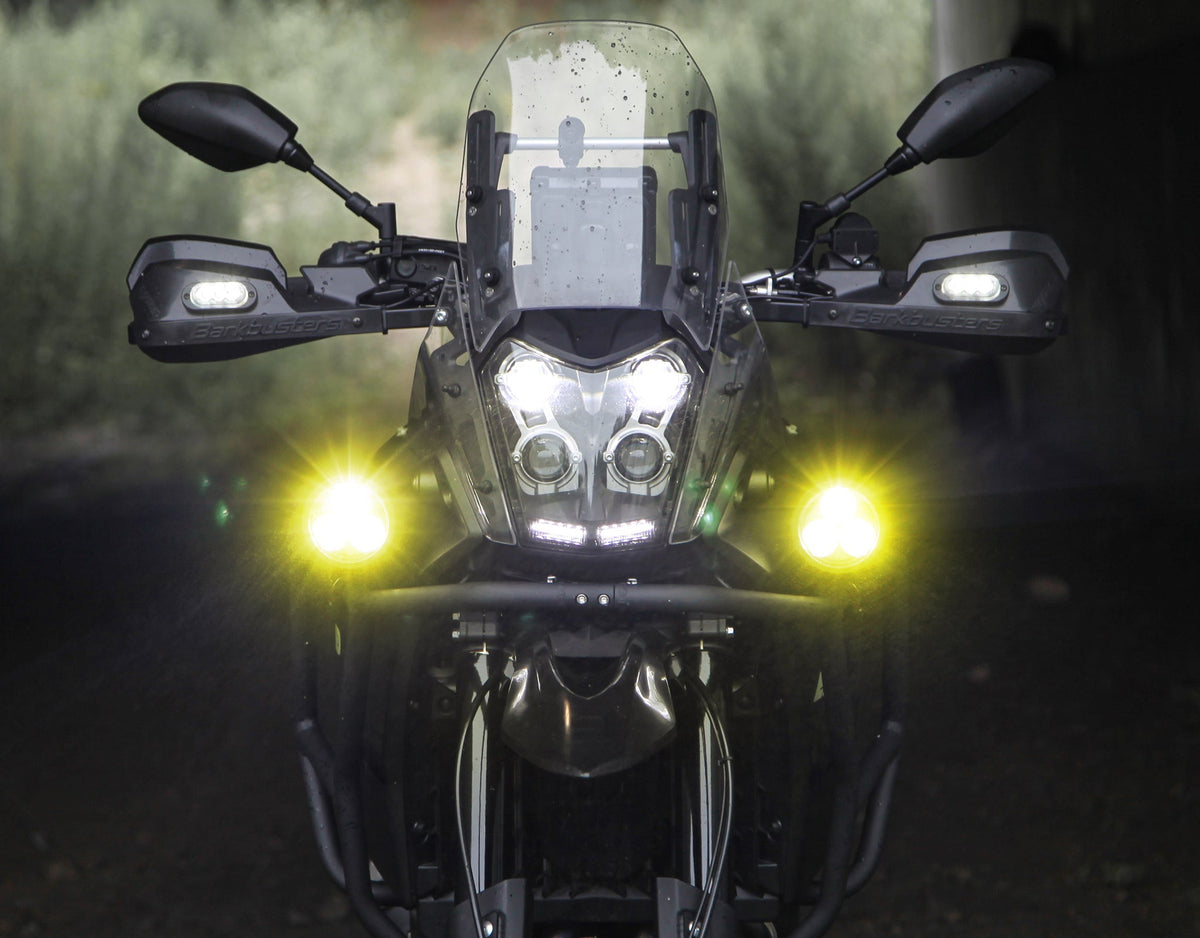

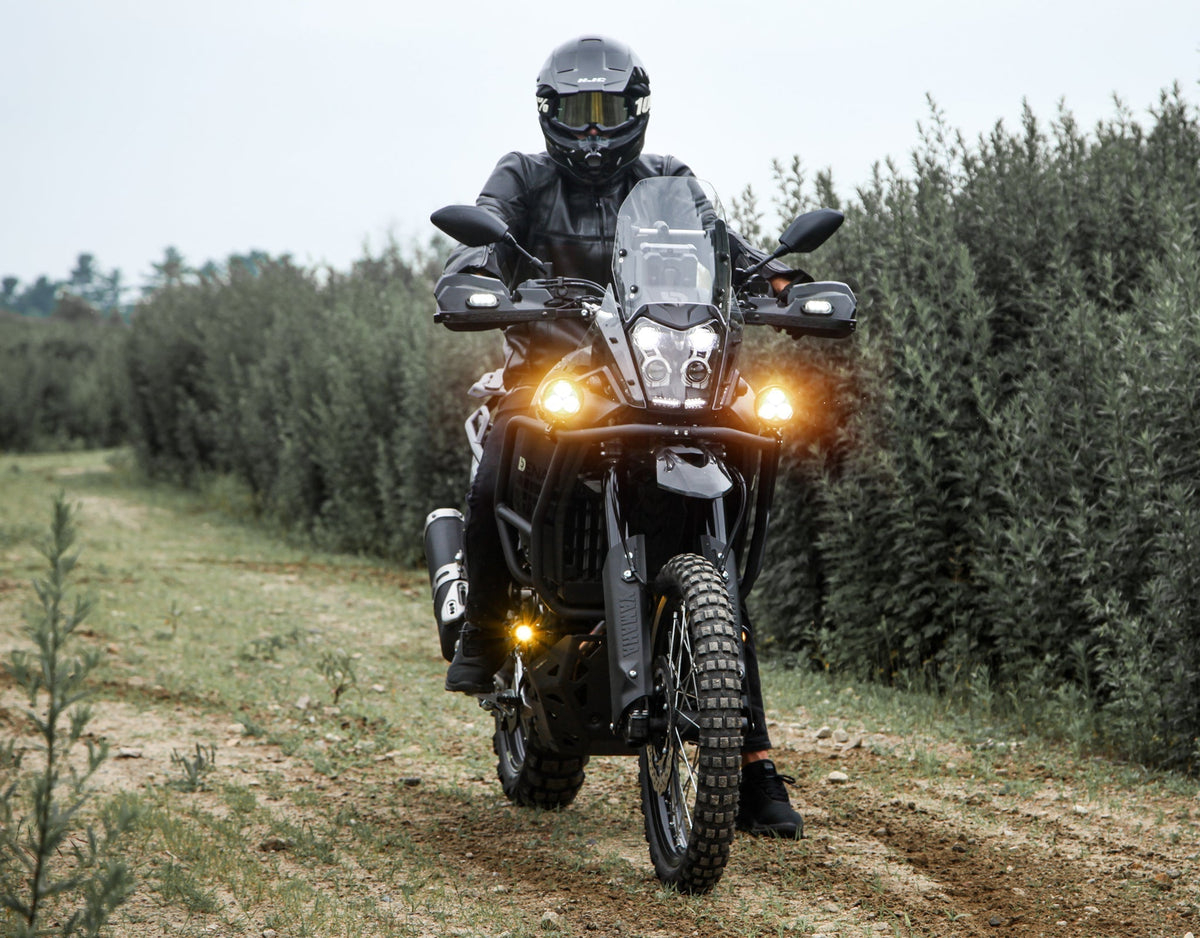

Choose to add an additional set of amber or selective yellow lenses to achieve greater performance in adverse weather conditions or to make your vehicle significantly more visible to other motorists on the road!
Our D3 is also available in an SAE & ECE certified fog beam for drivers seeking a true street-legal fog beam that is super wide and features a crisp horizontal "cut-off". SHOP D3 FOG
Features
TriOptic™ Lens System (includes spot and hybrid lenses with each pod)
Best in class street-legal spot and hybrid beams (SAE/DOT & ECE certified)
High-Intensity Series Cree LEDs outputting 2100 lumens per pod
DataDim™ 3-wire smart-dimming technology (compatible with all DENALI dimming controllers)
DrySeal™ Submersible Waterproof light can withstand the most extreme environments
Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.
LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
Low profile mounting bracket with stainless steel hardware included
Hybrid Lens Certifications: SAE/DOT J581 & ECE R112 (Clear lens only - Amber and yellow lenses do not SAE & ECE certified)
Spot Lens Certifications: ECE R112
New Wiring & Switching Options
For 2022 we have expanded on our standard light kit to deliver a customizable package that allows you to choose the best harness and lighting control option foryourvehicle onyourbudget! Select from the options above or click on the links below to learn more about each of our wiring and switching options. Please be sure to add one of these options to your light pods to complete your DENALI lighting kit!
Standard Powersports Harness - Robust, inexpensive, low-profile waterproof switch - the best option for a basic single intensity install
Standard Automotive Harness- Robust, added length, and a flush mount illuminated rocker switch for dash mounting
DataDim Module - Add this clever dimmer module to any of the above harnesses to enable your lights to change intensity in sync with your factory high beam switch!
DialDim Lighting Controller- The top dog in LED lighting control allows you to independently turn on/off and dim two sets of lights from a single halo dimmer switch and unlocks heaps of bonus features like high/low sync, strobe with horn, flash with signal, cancel with signal, electronic fuse setting and even doubles as a battery voltage monitor!
And last but not least we also make a complete accessory manager (The CANsmart Controller) that has dozens of customizable settings for controlling LED lights but can also be used to power and control any electrical accessories from lights and horns to heated grips, dash cams and GPS units.
Product Bundles - What’s Included?
The default product options above labeled (pair) include (2x) light pods with clear lenses installed (and an additional set of amber or yellow lenses if selected).
You can then choose to add one of our four wiring harness options.
All products included in this bundle are packaged in separate retail boxes and may ship separately. See below for the specific box contents of each light pod and lens kit.

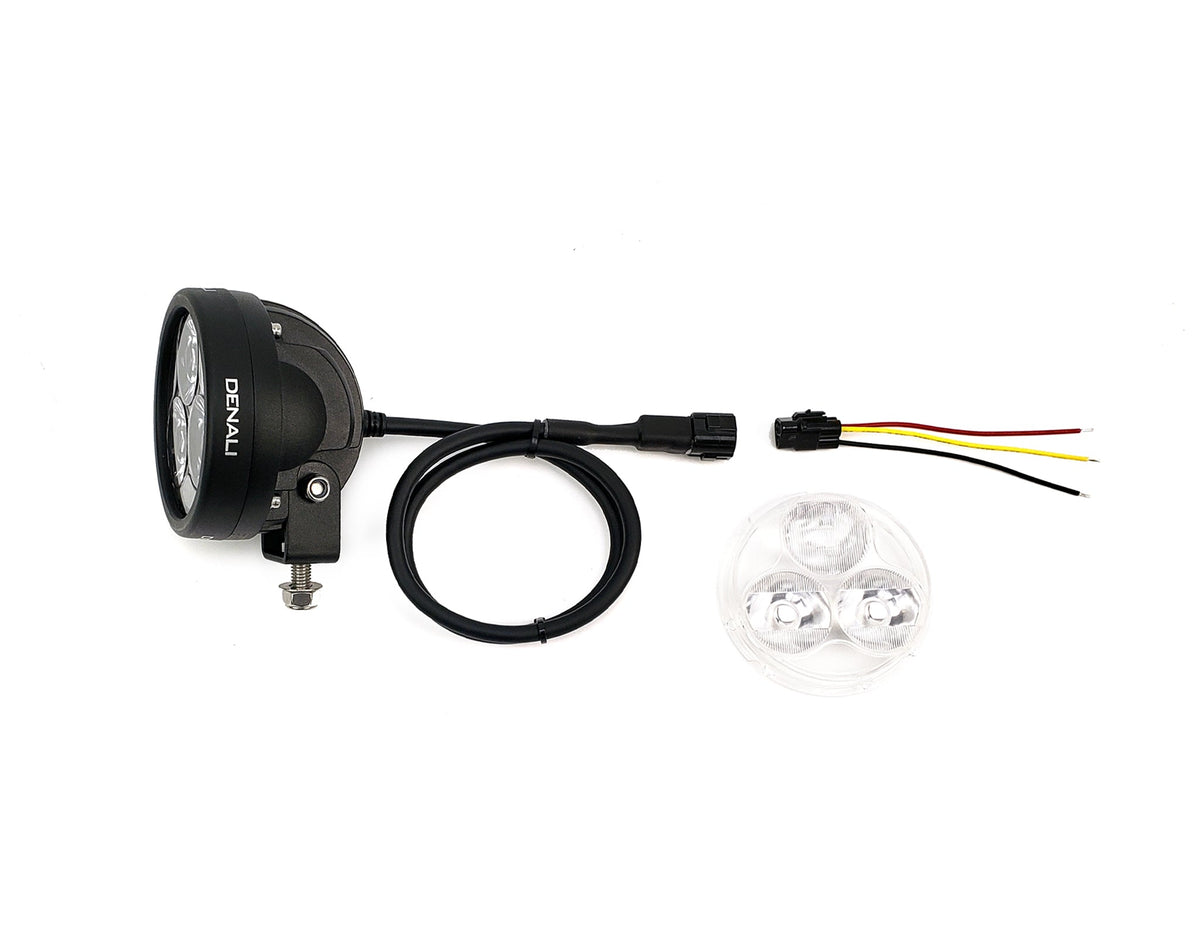

Light Pod Box Contents -DNL.D3.050
(1x) D3 LED Light Pod (spot lens installed)
(1x) D3 Hybrid Lens
(1x) Hinge Mounts with M8 Stainless Steel Hardware
A++ very sturdy product. This is going to last. Brightness is very satisfying. Phenomenal in short. But to bright at night for driving lights. Even at 10 percent.
J'adore, facile à installer, on sent que c'est du matériel de qualité: lourd dans la main, fabrication très propre, et très lumineux!!
Couplé avec le CANsmart, c'est très facile à paramétrer avec le logiciel fourni,
L'investissement vaut le coup!
I asked for and got the brightest DOT approved lights out there. They work perfectly for both conspicuity and additional illumination. My AT�s LED headlights are lacking for night riding. These really help. Thanks, Denali reps for taking the time to help me one-on-one with my choices.
I bought two sets of D3 lights. I am really pleased with them. The installation was relatively easy, and the EZcan software is simple to use. The lights are bright!
I installed a pair of D3 driving pods and an auxiliary LED brake light. The beam patterns of the D3's are excellent and the output levels and functions of the D3 lights and LED brake light are easily programmable and adaptable to varying situations. A significant enhancement in safety and conspicuity.
An sich sind das supertolle Leuchten, nur leider hat mir heute der deutsche TÜV die Stimmung vermiest. Es sind Fernlichter (HR-Kennzeichnung), aber an einem Motorrad sind nur insgesamt zwei Fernlichter zulässig. Wenn die Maschine also über ein integriertes Fernlicht verfügt – und welches Motorrad hat das nicht?! –, kann man nicht links und rechts eine Denali D3 montieren. Nur eine einzelne D3, mittig montiert, wäre zulässig.
Ich verstehe nicht, warum das im Set überhaupt verkauft wird!
Sind die gelben oder goldenen Einsätze evtl. mit einer B-Kennzeichnung versehen, sodass man aus den D3-Fernlichtern ganz offiziell Nebelscheinwerfer machen kann? Für einen Hinweis wäre ich dankbar.
Die Linke zum Gruß!
Je suis convaincu du produit mais deux semaines que j’essaye de les monter, je galère pour trouver le bon fil car le schéma que vous m’avez envoyé n’est pas le bon. En revanche vous avez un très bon support technique car j’ai eu plusieurs fois contact avec un de vos collaborateurs, mais là je suis en galère.
Install was easy. Hardest part was making a strong bracket that doesn't vibrate too much. I just can't see spending $ on brackets that you can make at home dirt cheap. Otherwise, I love the visibility and the functionality. Will get around to correctly aiming them this week. Am buying more Denali products.
Based on my experience with the S4's on my Africa Twin I am looking forward to installing the D3's on my Gold Wing. Unfortunately Santa Claus confiscated the D3's to be installed later while doing an air filter change.
I recently purchased a couple of D3s and a DialDim controller to make up for the worthless stock lighting on my Tiger 1050: I couldn�t be happier. Night rides were scary before adding the auxiliary and now I don�t give them a second thought. So far, I have them wired into my high beam, and into my horn so that strobe. I plan on adding a couple selective yellow D3s for additional daytime visibility and to better contend with the fog and rain I deal with on my commute. Fantastic product!
D3 Light Pods Have not wired them in yet. Went to mount them, using Denali light clamps. Bolts that came with the D3 pods are too long, M8-20. The nuts that come with these are the Acorn style with a plastic snap on cover.
M8-20 with the acorn nut tight, has about a 1/4 inch of loose thread left between the bottom of the nut and the Denali light mount bar. I like the acorn nut look, did not want to use an open M8 nut, so ordered up some M8-16 stainless bolts, waiting on those to mount the light pods
